Model - SCC

Starting at$11,950.00 USD

BACKGAUGE FEATURES

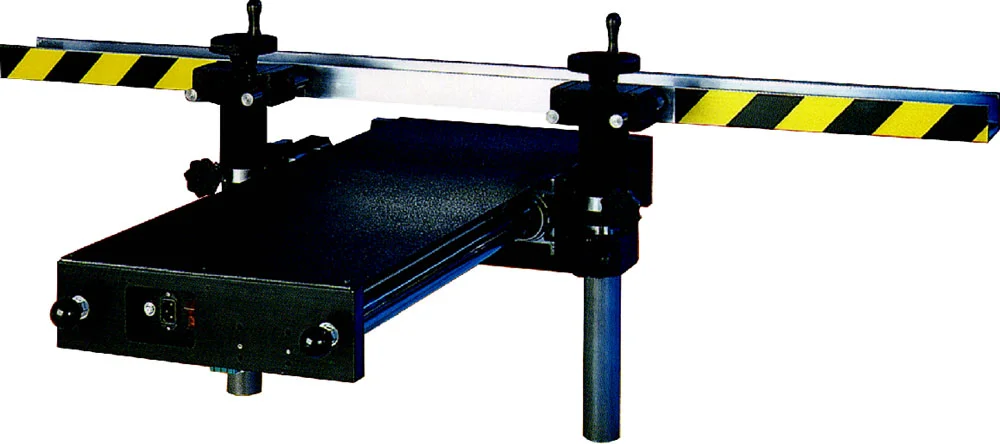

The smallest frame ideally suited for small pressbrakes 4-8 ft, it utilizes re-circulating ball bushing and shafting, combined with a precision ballscrew. The self contained electronics package fits inside of a 16 inch frame size. Overall width of the frame fits into 24 inch between uprights with dual 40MM shafting and ball screw. The electronics and ball screw are enclosed for protection. DC Servo overload, power connector and switch are accessible at the rear of the unit.

• Closed Loop DC Servo is contained within the Gauging
• Precision Rolled Ball Screw
• Heavy Duty Articulating Pendant
• Black Anodized Finish
• Precision Heidenhain Scale Encoder for ‘Y’ Axis (with MCC1 model version)
• 1 Year Warranty


AXES CONFIGURATION AVALIABLE

model SCC

model SCC

model MCC1

model MCC1



SYSTEM SPECIFICATIONS

  • Gauge Resolution 0.001"(0.01mm)

  • Speed 500 in/min (12.7m/min)

  • Gauging bar length 39" - 84" (990mm - 2133mm)

  • Height adjustment 12" (300mm)

  • Maximum Programmable Distance 24.000" (610.00mm)

  • Gauge repeatability ±0.001"(±0.02mm)

  • Lateral Adjustment 10"(254mm)

  • Accuracy .002"/12"(.05mm/300mm)



SYSTEM FEATURES

  • Precision Ball Screw

  • Precision Ground 40mm Shaft Guidance System

  • Direct Inch Metric Conversion

  • Ultra-Reliable 25 year Proven Electronic Design Still

  • 100% Manufacturing in House (Electronics, Software, Mechanics)

  • Ball Screw Completely Protected

  • Black Anodized Finish

  • Heavy Duty Articulating Pendant

  • Ergonomically Designed Control Console

  • High Performance Closed Loop DC Servo Motor and Control
