Model - SDD

Starting at  $14,950.00

BACKGAUGE FEATURES

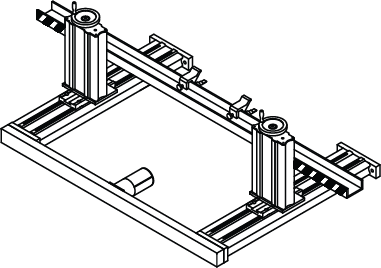

The DUAL DRIVE GAUGE FRAME is ideally suited for Up-Stroking pressbrakes, and for applications where large return folds are required. The slim but extremely rigid alumimum extrusion has a mimimum holding force of 500 lbs. The guidance system and precision rolled ball screw are enclosed inside the gauges themselves, to ensure they are fully protected from any outside elements such as welding grit dust.

The gauges are driven by a closed loop DC Servo System with built in over load protection. The Dual Drive has been engineered to suit pressbrakes from 6 feet (2m) to 12 feet (3.6m) giving the maximum accuracy and flexibility where it is needed, right at the gauging surface.


  • Closed Loop DC Servo is contained within the Gauging
  • Precision Rolled Ball Screw
  • Heavy Duty Articulating Pendant
  • Black Anodized Finish
  • Zakron's Patented  Servo Drive Technology.
  • Precision Heidenhain Scale Encoder for ‘Y’ Axis (with MDD1 model version)
  • 1 Year Warranty




AXES CONFIGURATIONS AVAILABLE

model SDD

model SDD

model MDD1

model MDD1

model MDD4

model MDD4



SYSTEM FEATURES

  • Precision Ground Preloaded Ball Screw
  • Extruded Aluminum Gauging Frame with Internal Guidance System
  • Direct Inch Metric Conversion
  • Ultra-Reliable 25 year Proven Electronic Design Still
  • 100% Manufacturing in House (Electronics, Software, Mechanics)
  • Ball Screw Drives and Ways Completely Protected
  • Black Anodized Finish
  • Heavy Duty Articulating Pendant
  • Ergonomically Designed Control Console
  • High Performance Closed Loop DC Servo Motor and Control

SYSTEM SPECIFICATIONS

  • Gauge Resolution 0.001"(0.01mm)
  • Speed 500 in/min (12.7m/min)
  • Gauging bar length 60" - 144" (1500mm - 3600mm)
  • Height adjustment 8" (200mm)
  • Maximum Programmable Distance 24.000" (610.00mm)
  • Gauge repeatability ±0.001"(±0.02mm)
  • Lateral Adjustment 10"(254mm)
  • Accuracy .002"/12"(.05mm/300mm)
